Diatome ultra knives and their applications
- Highest quality diamonds and optimal crystal orientation guarantee perfect ultrathin sections and a durable cutting edge
- Section pick-up is facilitated as the boat is horizontal allowing the water to completely fill the boat all the way round
- A hydrophilic surface makes it easy to wet the cutting edge, even with low water level
| Knife typ | Knife angle | Size [mm] | Code | Thickness range [nm] | Boat type | Application | |
|---|---|---|---|---|---|---|
> ultra 35° | 35° | 1.5 | DU3515 2.0 | DU3520 2.5 | DU3525 3.0 | DU3530 3.5 | DU3535 4.0 | DU3540 | 30 - 200 | Standard boat | Biological and materials science specimens | |

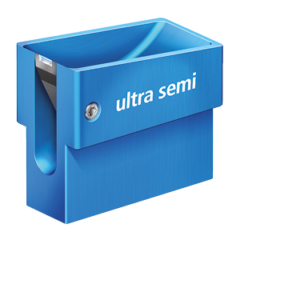

> ultra semi | 35° | 3.0 | DU3530-semi | 50 - 500 | Standard boat | Alternating sectioning ultrathin semithin | |

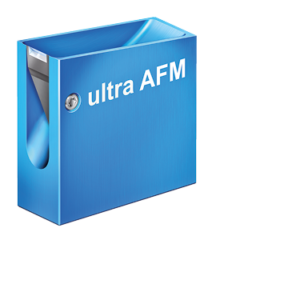

> ultra AFM | 35° | 2.0 | DU3520-AFM 3.0 | DU3530-AFM | 15 - 100 | Small boat | Sample surfacing for AFM | |

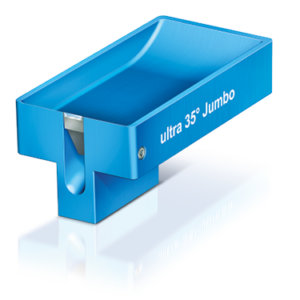

> ultra 35° Jumbo | 35° | 3.0 | DUJ3520 | 50 - 200 | Jumbo boat | Section series for 3D reconstruction, STEM | |

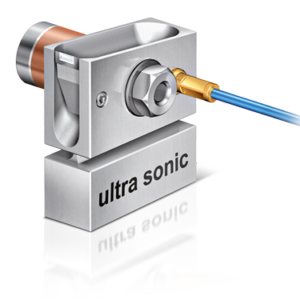

ultra sonic | 35° | 3.0 | DUS3530 | 15 - 100 | Special boat | Compression free sections Best structure preservation Biological and materials science specimens | |

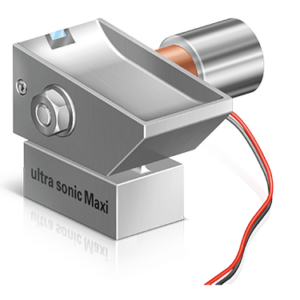

ultra sonic Maxi | 35° | 3.0 | DUSM3530 4.0 | DUSM3540 | 30 - 100 | Special wide boat | Biological specimens | |

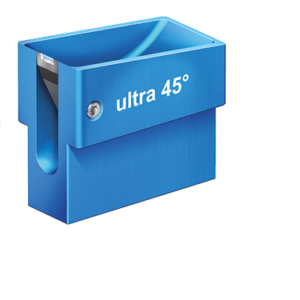

> ultra 45° | 45° | 1.5 | DU4515 2.0 | DU4520 2.5 | DU4525 3.0 | DU4530 3.5 | DU4535 4.0 | DU4540 | 30 - 200 | Standard boat | Routine sectioning of biological and materials science specimens | |

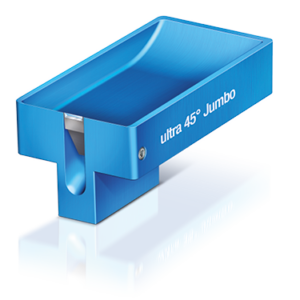

> ultra 45° Jumbo | 45° | 3.0 | DUJ4530 | 50 - 200 | Jumbo boat | Section series for 3D reconstruction, STEM | |
| > trim 45 > trim 20 > trim 90 > trim 45-4.0  | 45° | DTB45 DTB20 DTB90 DCTB4540 | Triangular holder | Trimming biological and materials science samples | ||
